Mini Fragment Plating System

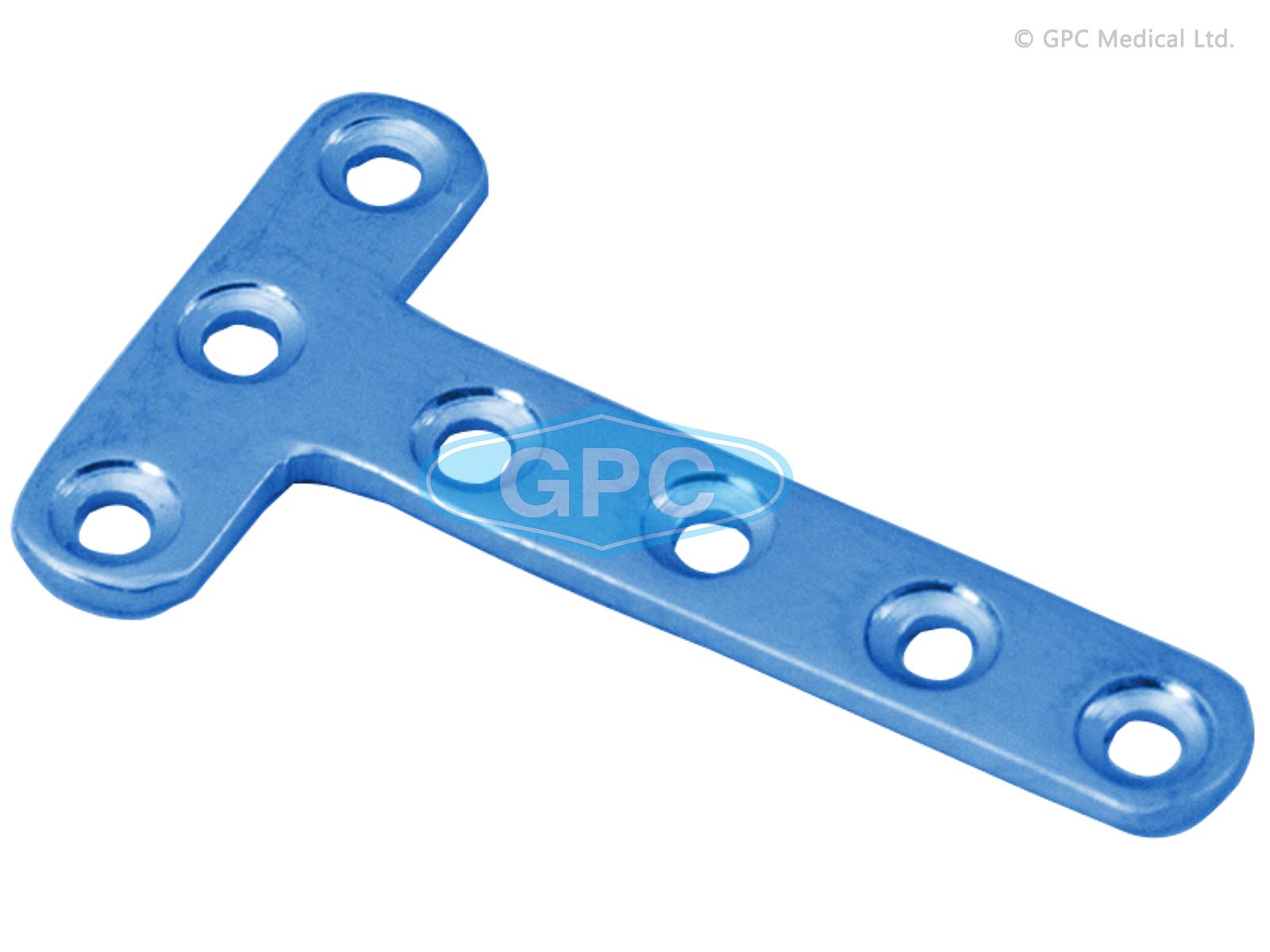

T- Plate 2.0

Indications:

Periarticular fractures of the middle and proximal phalanx
Osteotomies and nonunions of phalanges
Reconstruction of phalanges and metacarpals

Specifications

Features

T profile for additional fixation in phalanges
Minimal soft tissue irritation
Can be bent according to the contour of bone
Provides rigid fixation
Fixed with 2.0 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1 mm
Width (W): 5 mm
Hole Spacing (HS): 6 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
3	676.03	676.03T
4	676.04	676.04T
5	676.05	676.05T
