Model No: 675

Description

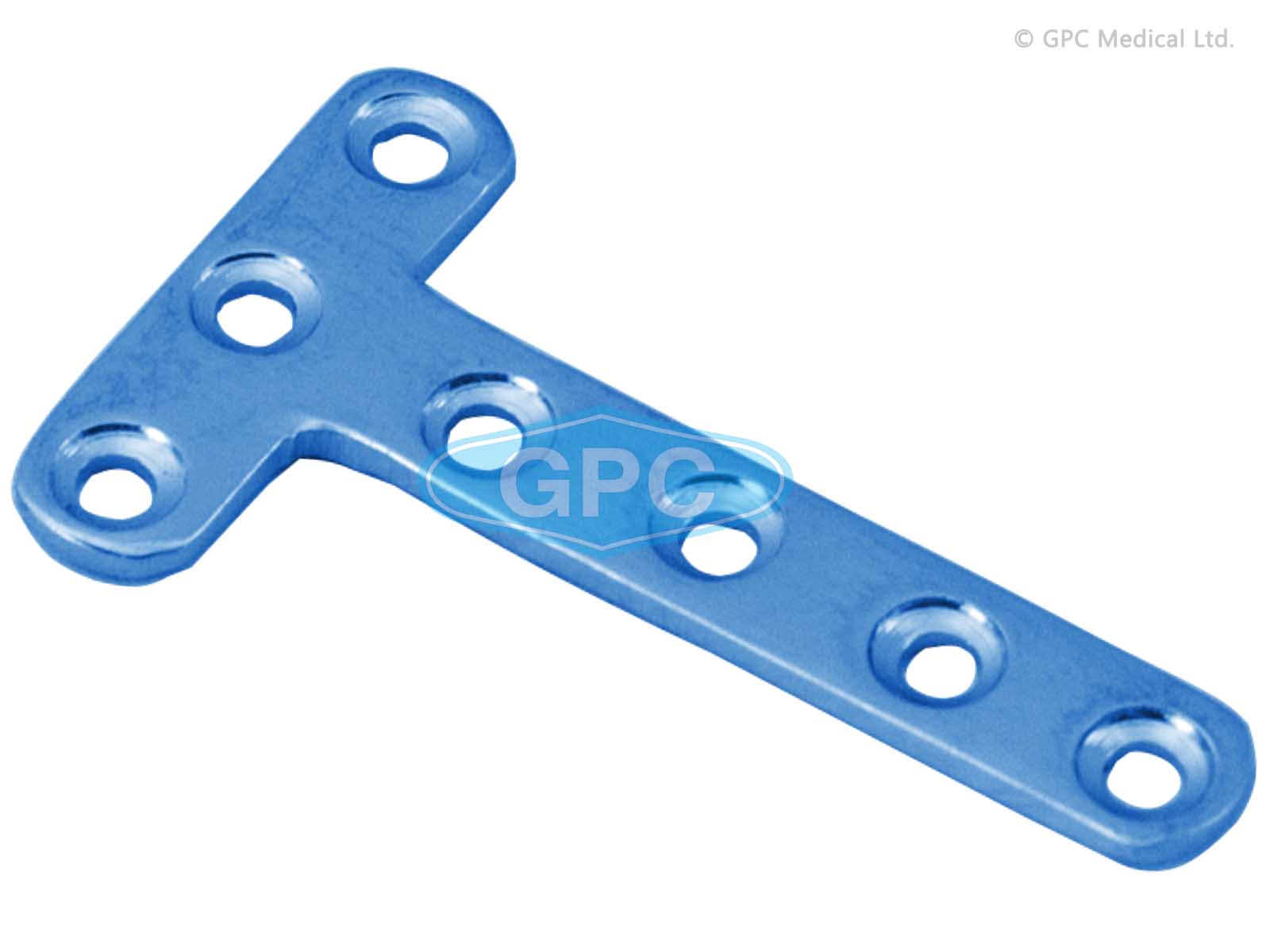

T- Plate 1.5

  • Indications
  • Periarticular fractures of the middle and proximal phalanx
  • Osteotomies and nonunions of phalanges
  • For fixation of head of radius
  • Specifications

Features

  • Head of the plate is fixed first in metaphysis and its shaft in the diaphysis
  • T profile for additional fixation in phalanges
  • Minimal soft tissue irritation
  • Can be bent according to the contour of bone
  • Provides rigid fixation in periarticular region
  • Axial compression of the fracture fragments can be achieved by eccentric placement of the screws
  • Fixed with 1.5 mm cortex screws
  • Available in both Titanium and Stainless Steel

Profile

  • Thickness (T): 1 mm
  • Width (W): 5 mm
  • Hole Spacing (HS): 5 mm



No. of
Holes		 CODE
S.S. Titanium
3 675.03 675.03T
4 675.04 675.04T
5 675.05 675.05T
