External Fixator

The Elbow Fixator System

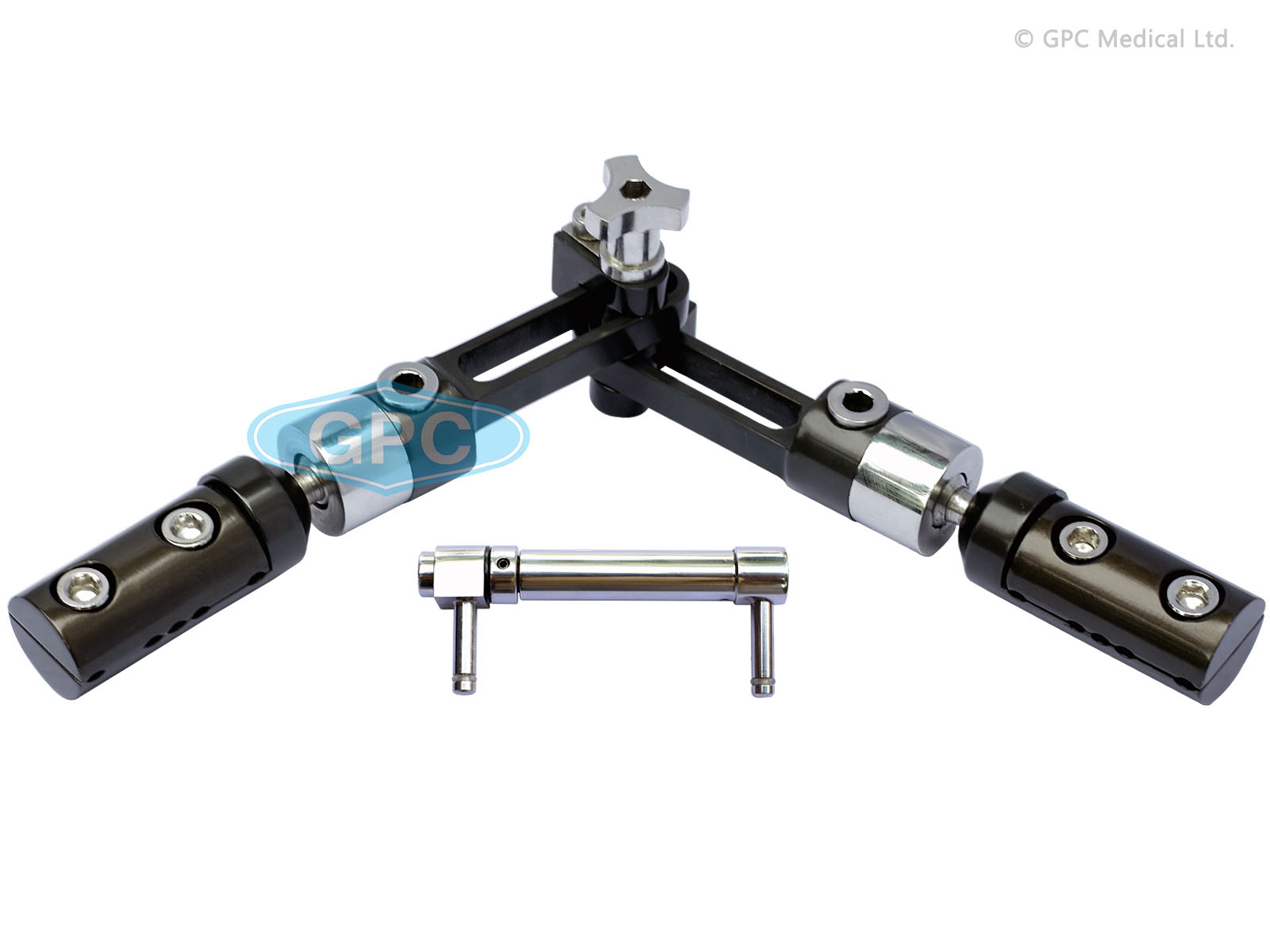

exHEAL The Elbow Fixator System

Indications:

Unstable dislocation or fracture dislocation of the elbow
Treatment of the stiff elbow
Post traumatic stiffness
For removal of an infected prosthesis

Specifications

Features

Comprises of two sliding links attached to straight clamps with ball joints
Central connecting unit between the links for length adjustment and locking
4.5/3.5 diameter tapered screws for use in the Ulna; 6.0/5.0 mm diameter tapered screws for use in the Humerus
Small distractors attaching to the links for intra-operative distraction of the injured elbow joint
A ball jointed extended range clamp available for more versatile ulnar screw placement
