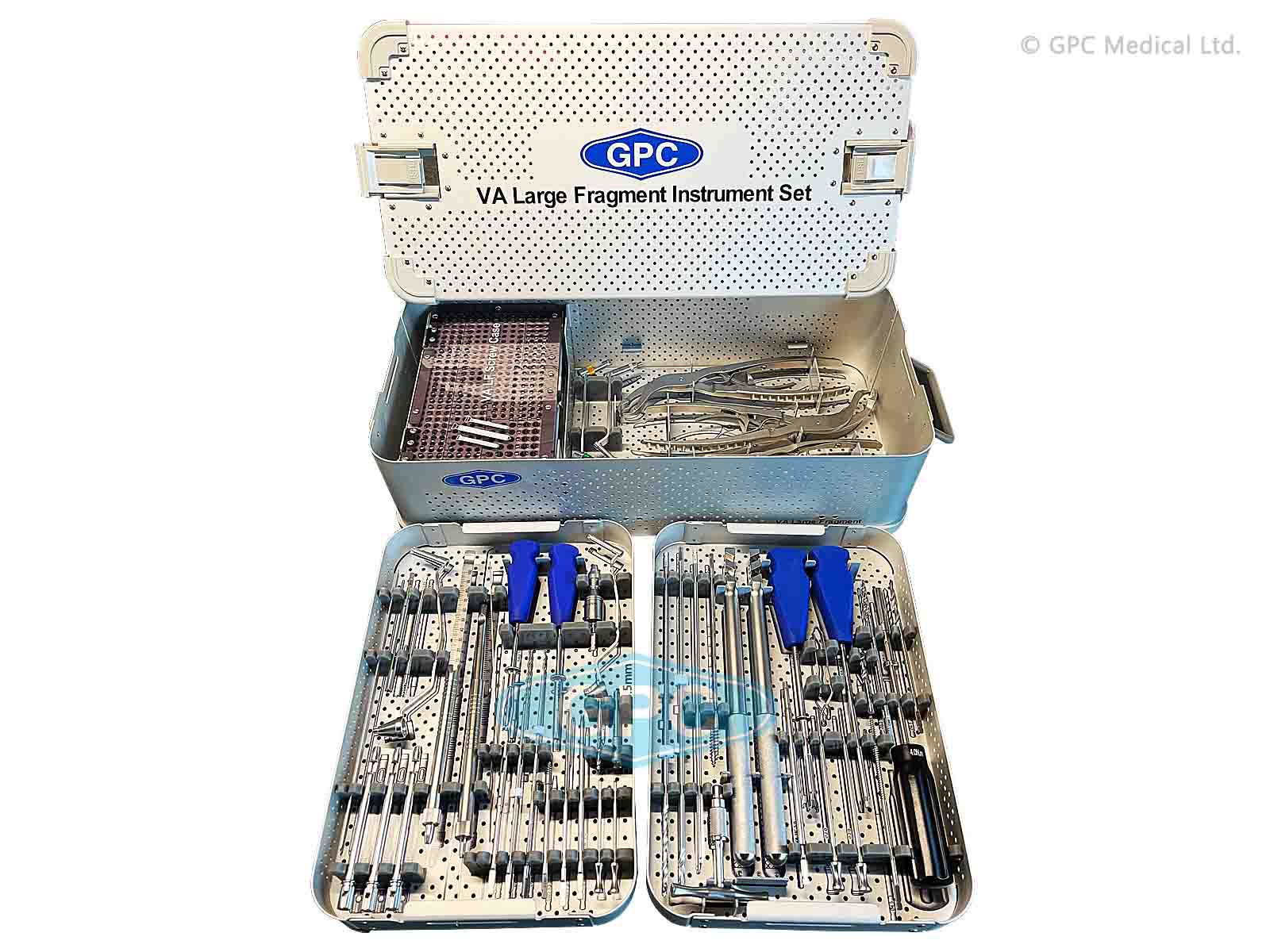

vaLOCK Instrument Set for Variable Angle Large Fragment with Aluminium Graphic Box
| GOS1439L.VA | vaLOCK Instrument Set for Variable Angle Large Fragment with Aluminium Graphic Box | Qty |
| GOS1439L.VA.01 | Aluminum Graphic Instrument Case | 1 |
| GOS1439L.VA.02 | Large Fragment VAS LCP 3.5/5.0mm Screw Case | 1 |
| GOS1439L.VA.03 | Drill Sleeve, Φ4.2mm | 3 |
| GOS1439L.VA.04 | Stopper , Φ4.2mm | 2 |
| GOS1439L.VA.05 | AO. QC. Drill Bit, Φ4.2 x 300mm | 2 |
| GOS1439L.VA.06 | Guide Pin Drill Sleeve, Φ2.0/Φ4.2mm | 2 |
| GOS1439L.VA.07 | Star Screwdriver for 5.0mm VAS Locking Screw | 1 |
| GOS1439L.VA.08 | Star Screwdriver Shaft for 5.0mm VAS Locking Screw, AO Quick Coupling | 1 |
| GOS1439L.VA.09 | Guide Wire, Φ2.0x250mm | 3 |
| GOS1439L.VA.10 | Combined Drill Guide, Φ3.2mm | 1 |
| GOS1439L.VA.11 | Combined Drill Guide, Φ4.5/3.2mm | 1 |
| GOS1439L.VA.12 | Easyout, SW3.5 | 1 |
| GOS1439L.VA.13 | Trephine, Φ5.0mm | 1 |
| GOS1439L.VA.14 | AO. QC. Drill Bit, Φ4.5mm | 1 |
| GOS1439L.VA.15 | AO. QC. Drill Bit, Φ3.2mm | 2 |
| GOS1439L.VA.16 | Depth Gauge for 5.0mm VAS Locking Screw, 100mm | 1 |
| GOS1439L.VA.17 | T-Handle with Quick Coupling | 1 |
| GOS1439L.VA.18 | Bone Tap Cancellous | 1 |
| GOS1439L.VA.19 | Bone Tap Locking screw | 1 |
| GOS1439L.VA.20 | Bone Tap Cortical | 1 |
| GOS1439L.VA.21 | Hex Screwdriver, SW3.5 | 1 |
| GOS1439L.VA.22 | Screw Holding Sleeve for 5.0mm VAS Locking Screw | 1 |
| GOS1439L.VA.23 | Reduction Forceps, Serrated Jaws, Large | 1 |
| GOS1439L.VA.24 | Reduction Forceps with Points, Large | 1 |
| GOS1439L.VA.25 | Bone Holding Forceps, Self-Centering | 2 |
| GOS1439L.VA.26 | Plate Benders Large by pair | 2 |
| GOS1439L.VA.27 | Screw Holding Forceps | 1 |
| GOS1439L.VA.28 | Drill Bit for Metal, Φ6.0mm | 1 |
| GOS1439L.VA.29 | Screw Holding Sleeve for 4.5mm Cortical Screw | 1 |
| GOS1439L.VA.30 | Φ4.2mm VA Drill Guide for 5.0mm VAS Locking Screw | 1 |
| GOS1439L.VA.31 | Locking Drill sleeve, Φ2.8mm | 2 |
| GOS1439L.VA.32 | Drill Bit, Φ2.8 x 200mm | 2 |
| GOS1439L.VA.33 | Stopper, Φ2.8mm | 2 |
| GOS1439L.VA.34 | Bone Tap Locking screw | 1 |
| GOS1439L.VA.35 | Star Screwdriver for 3.5mm VAS Locking Screw, AO Quick Coupling | 1 |
| GOS1439L.VA.36 | Screw Holding Sleeve for 3.5mm VAS Locking Screw | 1 |
| GOS1439L.VA.37 | Φ2.8mm VA Drill Guide for 3.5mm VAS Locking Screw | 1 |
| GOS1439L.VA.38 | Hex Screwdriver, SW2.5 | 1 |
| GOS1439L.VA.39 | Screw Holding Sleeve for 3.5mm Cortical Screw | 1 |
| GOS1439L.VA.40 | Star Screwdriver for 3.5mm VAS Locking Screw, Self-Retaining, Φ3.4mm | 1 |
| GOS1439L.VA.41 | Depth Gauge for 3.5mm VAS Locking Screw, 100mm | 1 |
| GOS1439L.VA.42 | Torque Limiter, 1.5 NM | 1 |
| GOS1439L.VA.43 | Torque Limiter, 4.0 NM | 1 |
| GOS1439L.VA.44 | Handle for Torque Limiter | 1 |
| GOS1439L.VA.45 | Drill Bit, short flute, Φ4.2 x 200mm | 2 |
| GOS1439L.VA.46 | Drill Bit, short flute, Φ2.8 x 200mm | 2 |
| GOS1439L.VA.47 | Guide Pin Drill Sleeve, Φ1.2/ Φ2.8mm | 2 |
| GOS1439L.VA.48 | Guide Wire, Φ1.2x180mm | 3 |
| GOS1439L.VA.49 | Easyout, SW2.5 | 1 |
| GOS1439L.VA.50 | Trephine, Φ4.0mm | 1 |
| GOS1439L.VA.51 | Drill Bit for Metal, Φ4.0mm | 1 |
