Model No: ITLD09-14

Description

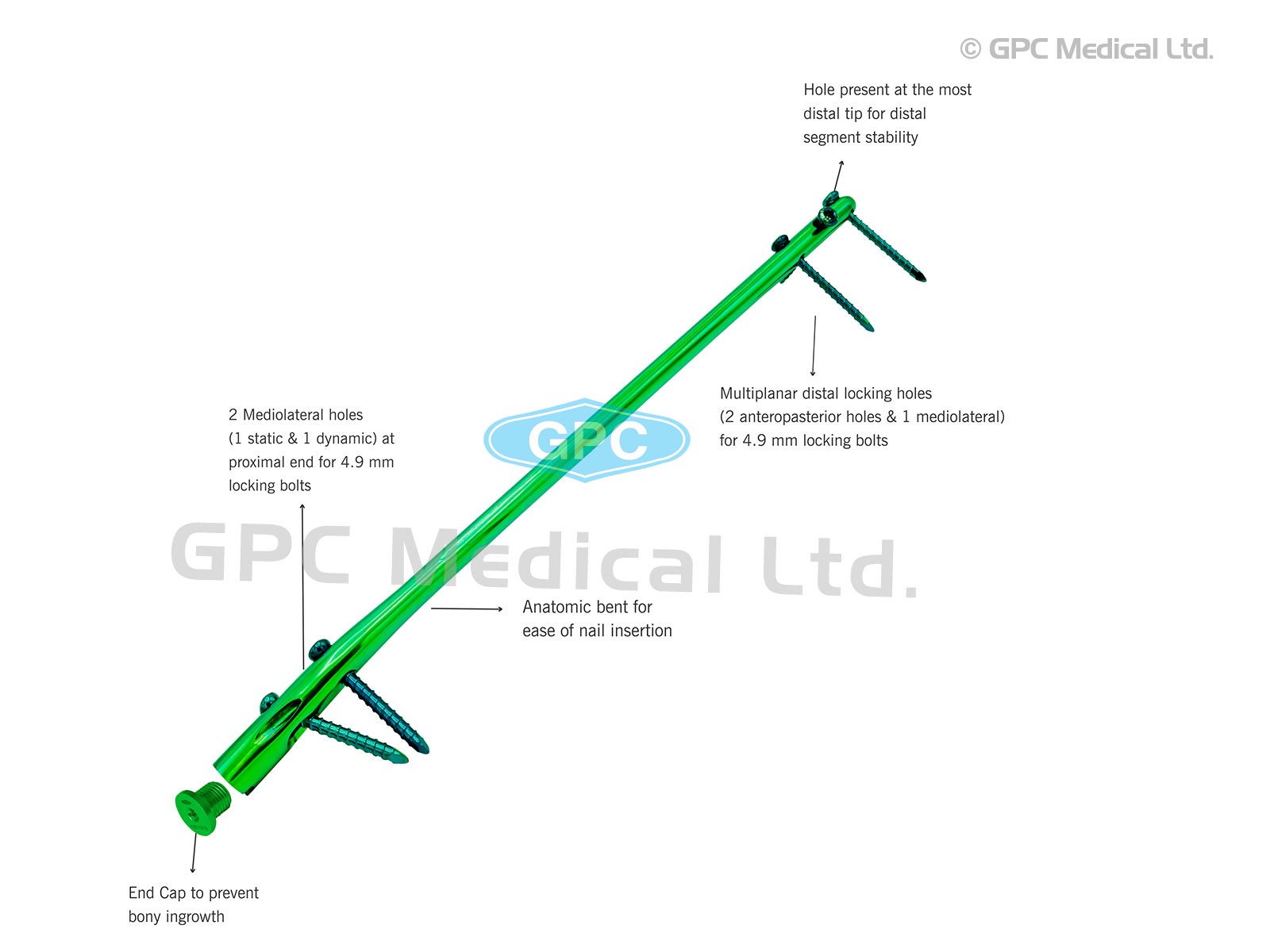

intraHEAL Reamed Tibial Nail, Distal Tip

  • Indications
Tibial fracture (especially with fracture extending into the distal one fourth of tibia)
  • Multi-fragment fractures Code for Dia. (mm) S.S.• Segmental fractures
  • Distal mal-union/ nonunion
  • Pseudarthrosis
  • Corrective osteotomies
  • Pathologic and impending pathologic fractures
  • Tumor resections
  • Comminuted fractures with or without bone loss
  • Specifications
  • Superior biomechanical intramedullary stabilization of tibial fracture
  • Distal most screw situated at the distal tip of the nail
  • Static and dynamic locking options
  • 10 degree Herzog bend in proximal third of nail
  • Biplanar distal locking options provide rotational stability
  • Small caliber, cannulated implant inserted after reaming helps in reducing the hoop stress formation
  • Stability is increased with the reamed technique, because the nail fits snugly in a longer portion of the tibial shaft
  • Universal nail for right & left tibia
  • Available in both titanium and stainless steel


  Length    (cm)

Code for Dia. (mm)  S.S.

    9

    10

  11

   12

  13

  14

  22

  ITLD09.22

  ITLD10.22

  ITLD11.22






  23

  ITLD09.23

  ITLD10.23

  ITLD11.23







  24

  ITLD09.24

  ITLD10.24

  ITLD11.24







  25

  ITLD09.25

  ITLD10.25

  ITLD11.25







  26

  ITLD09.26

  ITLD10.26

  ITLD11.26

  ITLD12.26

  ITLD13.26

  ITLD14.26

  27

  ITLD09.27

  ITLD10.27

  ITLD11.27

  ITLD12.27

  ITLD13.27

  ITLD14.27

  28

  ITLD09.28

  ITLD10.28

  ITLD11.28

  ITLD12.28

  ITLD13.28

  ITLD14.28

  29

  ITLD09.29

  ITLD10.29

  ITLD11.29

  ITLD12.29

  ITLD13.29

  ITLD14.29

  30

  ITLD09.30

  ITLD10.30

  ITLD11.30

  ITLD12.30

  ITLD13.30

  ITLD14.30

  31

  ITLD09.31

  ITLD10.31

  ITLD11.31

  ITLD12.31

  ITLD13.31

  ITLD14.31

  32

  ITLD09.32

  ITLD10.32

  ITLD11.32

  ITLD12.32

  ITLD13.32

  ITLD14.32

  33

  ITLD09.33

  ITLD10.33

  ITLD11.33

  ITLD12.33

  ITLD13.33

  ITLD14.33

  34

  ITLD09.34

  ITLD10.34

  ITLD11.34

  ITLD12.34

  ITLD13.34

  ITLD14.34

  35

  ITLD09.35

  ITLD10.35

  ITLD11.35

  ITLD12.35

  ITLD13.35

  ITLD14.35

  36

  ITLD09.36

  ITLD10.36

  ITLD11.36

  ITLD12.36

  ITLD13.36

  ITLD14.36

  37

  ITLD09.37

  ITLD10.37

  ITLD11.37

  ITLD12.37

  ITLD13.37

  ITLD14.37

  38

  ITLD09.38

  ITLD10.38

  ITLD11.38

  ITLD12.38

  ITLD13.38

  ITLD14.38

  39

  ITLD09.39

  ITLD10.39

  ITLD11.39

  ITLD12.39

  ITLD13.39

  ITLD14.39

  40

  ITLD09.40

  ITLD10.40

  ITLD11.40

  ITLD12.40

  ITLD13.40

  ITLD14.40

  41

  ITLD09.41

  ITLD10.41

  ITLD11.41

  ITLD12.41

  ITLD13.41

  ITLD14.41

  42

  ITLD09.42

  ITLD10.42

  ITLD11.42

  ITLD12.42

  ITLD13.42

  ITLD14.42

  43

  ITLD09.43

  ITLD10.43

  ITLD11.43

  ITLD12.43

  ITLD13.43

  ITLD14.43

  44

  ITLD09.44

  ITLD10.44

  ITLD11.44

  ITLD12.44

  ITLD13.44

  ITLD14.44

For Titanium, please affix ‘T’ after above code number.
