Model No: UTL09-14

Description

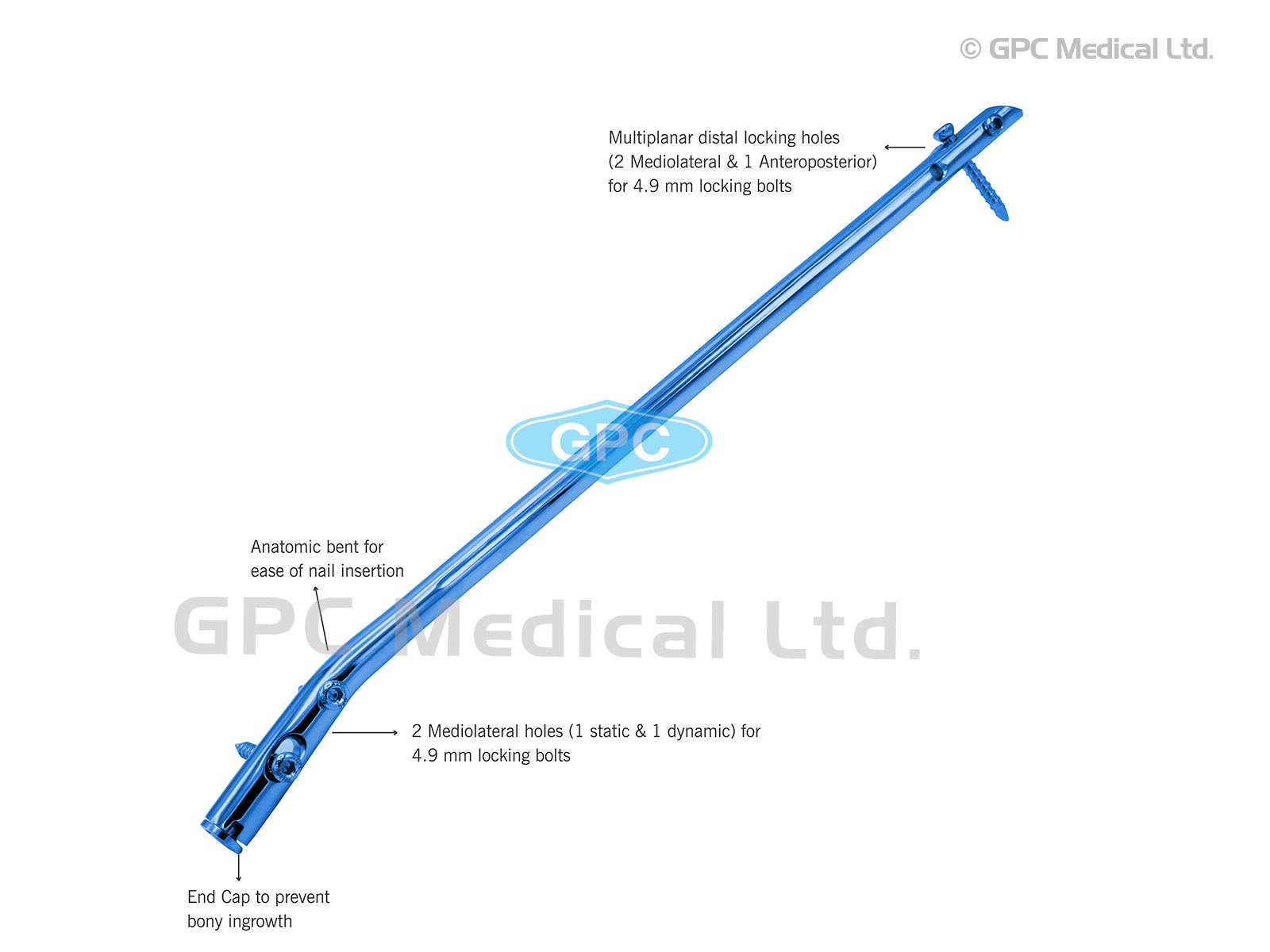

The GPC unreamed tibial nails are indicated in Grade 1&2 open tibial fractures, high energy unstable closed fractures and comminuted fractures of tibia with small medullary canals. They are available in stainless steel and titanium. Interlocking nail is available in length ranging from 22-44cm(1cm increments) and diameter from 9-14mm(1mm increments).It has two proximal locking options and three distal locking options.

  • Indications
  • Open & closed tibial shaft fracture, particularly with smaller medullary canal
  • Mal-unions/non-unions of the tibial shaft
  • Open/comminuted fracture of the tibia shaft
  • Pathological fracture
  • Tibia & fibula shaft fracture
  • Pseudoarthrosis
  • Tumor resection
  • Corrective Osteotomies
  • Specifications
  • Since the nail is solid, there is reduced risk of pulmonary dysfunction from embolized medullary debris
  • Static and dynamic locking options
  • Biplanar distal locking options provide rotational stability
  • No disruption of medullary blood supply
  • 10 degree Herzog bend in proximal third of nail
  • Decreased dead space reduces the risk of infection
  • Universal nail for right & left tibia
  • Available in both titanium and stainless steel

  Length    (cm)

                                                       Code for Dia. (mm)  S.S.

    9

    10

  11

   12

  13

  14

  22

  UTL09.22

  UTL10.22

  UTL11.22







  23

  UTL09.23

  UTL10.23

  UTL11.23







  24

  UTL09.24

  UTL10.24

  UTL11.24







  25

  UTL09.25

  UTL10.25

  UTL11.25







  26

  UTL09.26

  UTL10.26

  UTL11.26

  UTL12.26

  UTL13.26

  UTL14.26

  27

  UTL09.27

  UTL10.27

  UTL11.27

  UTL12.27

  UTL13.27

  UTL14.27

  28

  UTL09.28

  UTL10.28

  UTL11.28

  UTL12.28

  UTL13.28

  UTL14.28

  29

  UTL09.29

  UTL10.29

  UTL11.29

  UTL12.29

  UTL13.29

  UTL14.29

  30

  UTL09.30

  UTL10.30

  UTL11.30

  UTL12.30

  UTL13.30

  UTL14.30

  31

  UTL09.31

  UTL10.31

  UTL11.31

  UTL12.31

  UTL13.31

  UTL14.31

  32

  UTL09.32

  UTL10.32

  UTL11.32

  UTL12.32

  UTL13.32

  UTL14.32

  33

  UTL09.33

  UTL10.33

  UTL11.33

  UTL12.33

  UTL13.33

  UTL14.33

  34

  UTL09.34

  UTL10.34

  UTL11.34

  UTL12.34

  UTL13.34

  UTL14.34

  35

  UTL09.35

  UTL10.35

  UTL11.35

  UTL12.35

  UTL13.35

  UTL14.35

  36

  UTL09.36

  UTL10.36

  UTL11.36

  UTL12.36

  UTL13.36

  UTL14.36

  37

  UTL09.37

  UTL10.37

  UTL11.37

  UTL12.37

  UTL13.37

  UTL14.37

  38

  UTL09.38

  UTL10.38

  UTL11.38

  UTL12.38

  UTL13.38

  UTL14.38

  39

  UTL09.39

  UTL10.39

  UTL11.39

  UTL12.39

  UTL13.39

  UTL14.39

  40

  UTL09.40

  UTL10.40

  UTL11.40

  UTL12.40

  UTL13.40

  UTL14.40

  41

  UTL09.41

  UTL10.41

  UTL11.41

  UTL12.41

  UTL13.41

  UTL14.41

  42

  UTL09.42

  UTL10.42

  UTL11.42

  UTL12.42

  UTL13.42

  UTL14.42

  43

  UTL09.43

  UTL10.43

  UTL11.43

  UTL12.43

  UTL13.43

  UTL14.43

  44

  UTL09.44

  UTL10.44

  UTL11.44

  UTL12.44

  UTL13.44

  UTL14.44

For Titanium, please affix ‘T’ after above code number.
