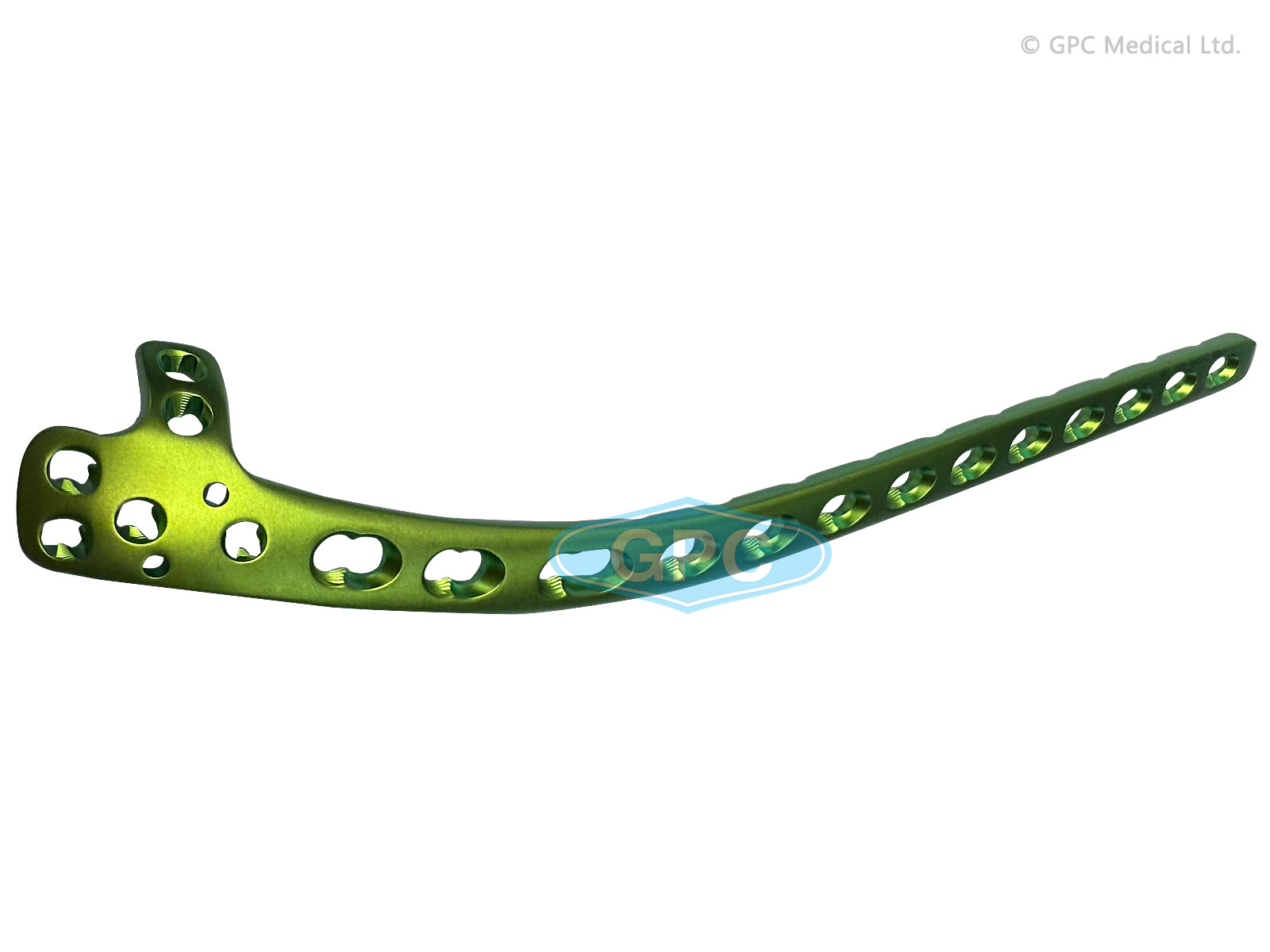

vaLOCK Distal Humeral Plate 2.7/3.5, dorsolateral, with lateral support

Model No.: 1220T

Product Availability: In Stock

The plates provide a range of screw configurations for both the medial and lateral columns, as well as the articular block of the distal humerus.

Superior
Quality

Affordable
Pricing

Timely
Shipment

Customer
Satisfaction

vaLOCK Distal Humeral Plate 2.7/3.5, dorsolateral, with lateral support System is indicated for fixation of fractures, malunions, nonunions and osteotomies of distal humerus, olecranon, and ulna

Cloverleaf designed holes.
6 Variable Angle head holes with 2-suture hole.
Locking screws can be angled within 25-degree cone around the central axis of the variable angle locking screw.
Anatomically shaped
Proximal locking holes accept 2.7mm VA locking screws
Distal shaft of standard plate consists of locking holes of 3.5mm.
Available in titanium only
Precontoured plate for anatomical shape – Left and right plates
Plates are available with 3,5,7,9,11,13,15 holes

1220TL	vaLOCK Distal Humeral Plate 2.7/3.5, dorsolateral, with lateral support, Left - Titanium
Item Code
1220.03TL	3 Holes
1220.05TL	5 Holes
1220.07TL	7 Holes
1220.09TL	9 Holes
1220.11TL	11 Holes
1220.13TL	13 Holes
1220.15TL	15 Holes

1220TR	vaLOCK Distal Humeral Plate 2.7/3.5, dorsolateral, with lateral support, Right - Titanium
Item Code
1220.03TR	3 Holes
1220.05TR	5 Holes
1220.07TR	7 Holes
1220.09TR	9 Holes
1220.11TR	11 Holes
1220.13TR	13 Holes
1220.15TR	15 Holes
